Description
Pipe Inspection Camera Key Features:
- Inspect lines from 80mm-150mm (3″ – 6″)
- Can inspect through 90° bends in pipes
- 21mm (0.82”) 1080P detachable double waterproof camera head
- Optional 512Hz transmitter and self leveling built-in to all camera heads, field-tested tough camera heads
- 13.3inch colour monitor with 1080P resolution
- Digital recording using external storage SD Card / USB driver to store still pictures or videos
- Up to 50m (170′) long, 6.8mm (0.26”) push rod. 40/30/20m also available (66-135′)
- 5.3mm fiberglass push rod available with 21mm camera head (Up to 50m)
- Solid yet lightweight and multifunctional frames
- Durable & field replaceable push rod that resists kinking
- Powered with either mains power or built-in battery

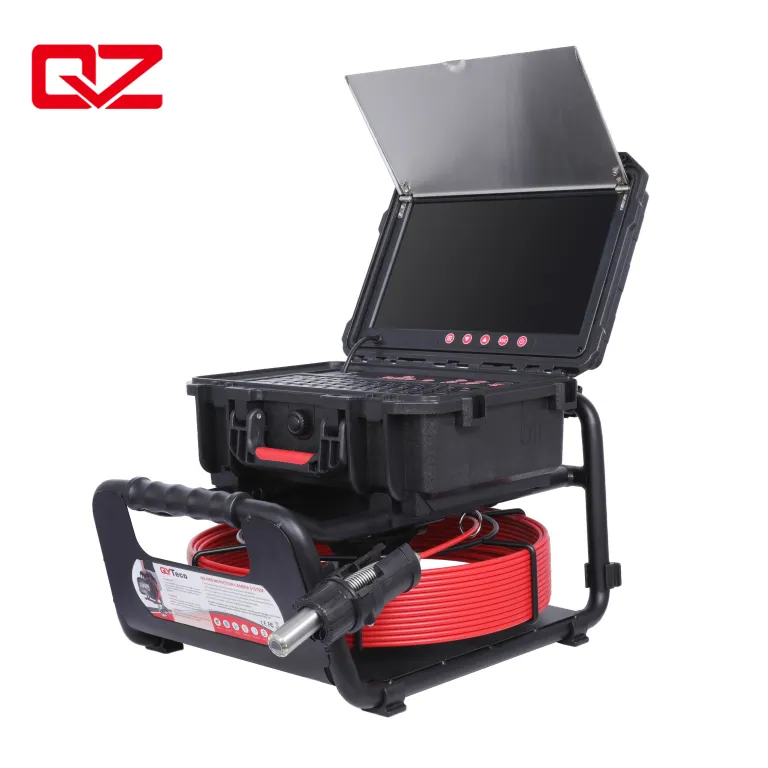

It consists of three main parts:
- Control box with 13.3inch big IPS DVR and wireless keyboard for text input

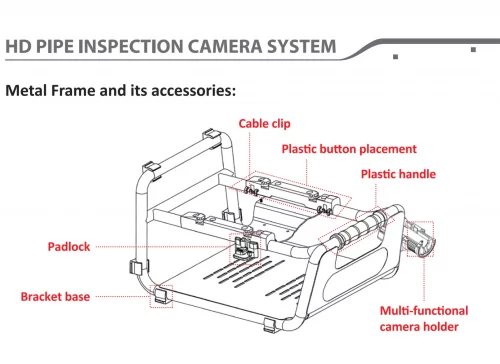

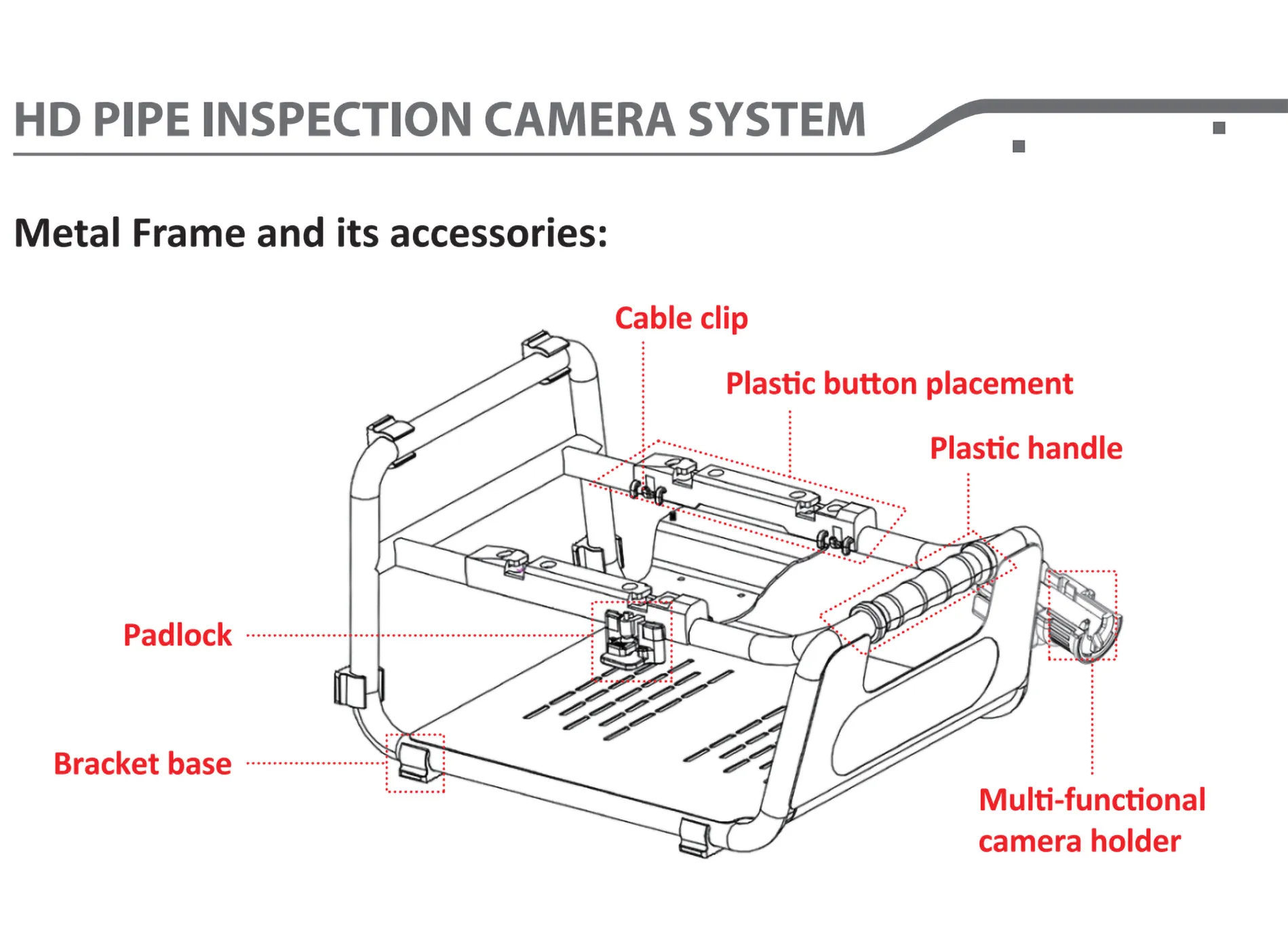

- Metal frame with automatic padlock
- Cable reel with meter counter equipment, fiberglass push rod and 29mm 1080P Camera (sapphire lens)

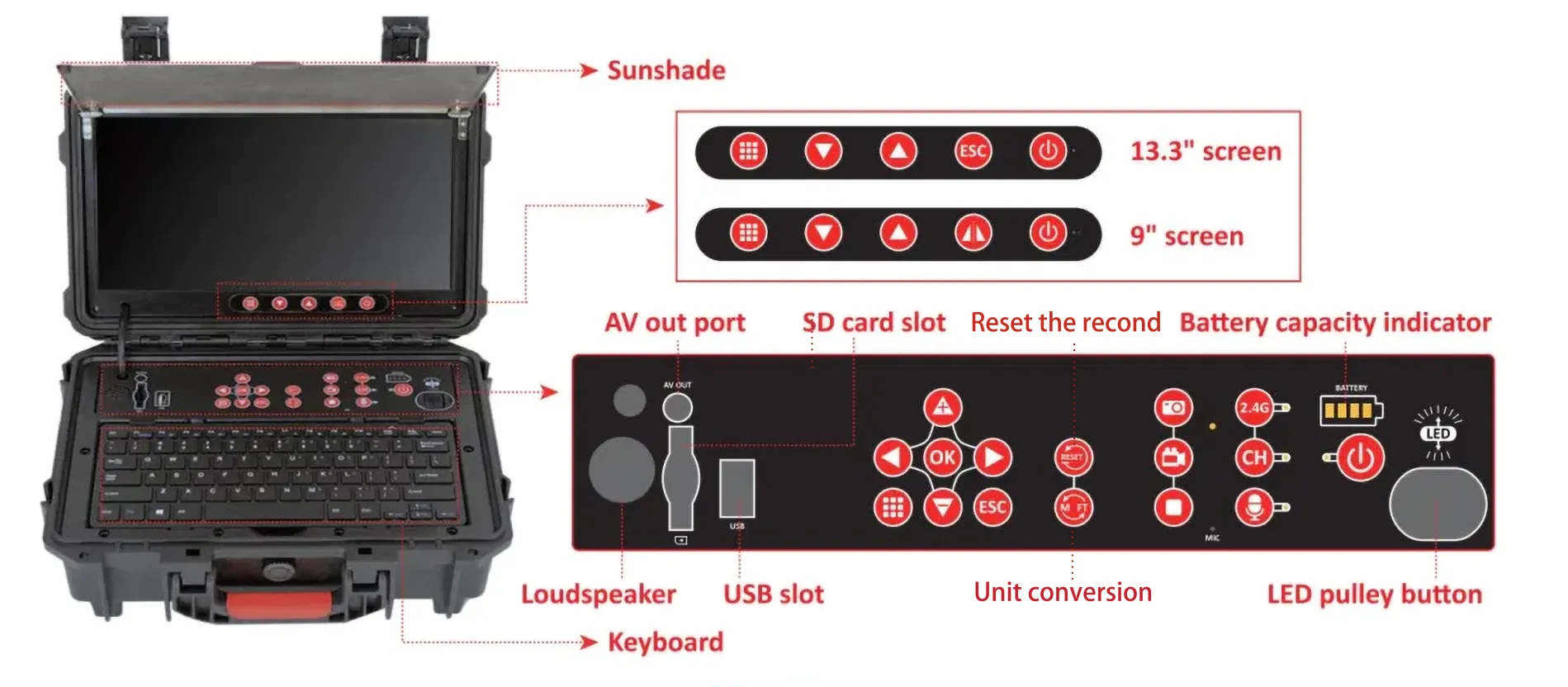

Control Box
The control box is installed on the metal frame and has an automatic locking feature.
- External power charging port with LED indicator light
- The power input port on the cable reel is located on the side of the spindle, instead of the top, to prevent water and dust ingress.
- The plastic button placement is to connect the toolbox and the metal frame, which can protect the metal frame and prevent the friction sound.
- Cable clips keep the cable tidy
- Comfortable carrying handles
- An integral metal bottom plate gives the frame strength and prevents the cable from getting snagged.

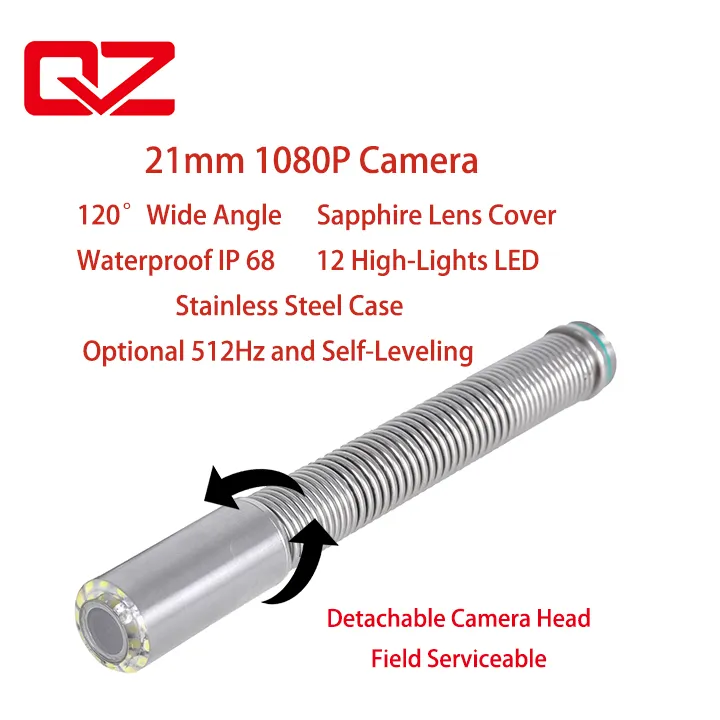

- The 21mm 1080P camera head is detachable for easy replacement and to reduce repair costs.
- The 21mm 1080P camera uses a 512hz probe / transmitter and is self leveling
Specification:
- Camera head: 21mm(0.82”)
- Lighting Built-In：12 x LED bright lights (White)
- Resolution: 1920 x 1080 RGB
- Aperture / Field of View: 120°
- Spring：field serviceable
- Auto-flip imagery ensures upright image
- The self-leveling camera head keeps the image upright
- Optional Self-leveling
